DigiCad 3D is an excellent tool for dealing with images, drawings, photographs of building, regular or irregular surfaces and maps. It operates either directly on raster images or by digitization. It is used in photogrammetry, cartography and, increasingly in recent years, in architectural photogrammetry, for which it offers powerful, easy-to-use and exclusive instruments.

 Just click on the images to enlarge them!

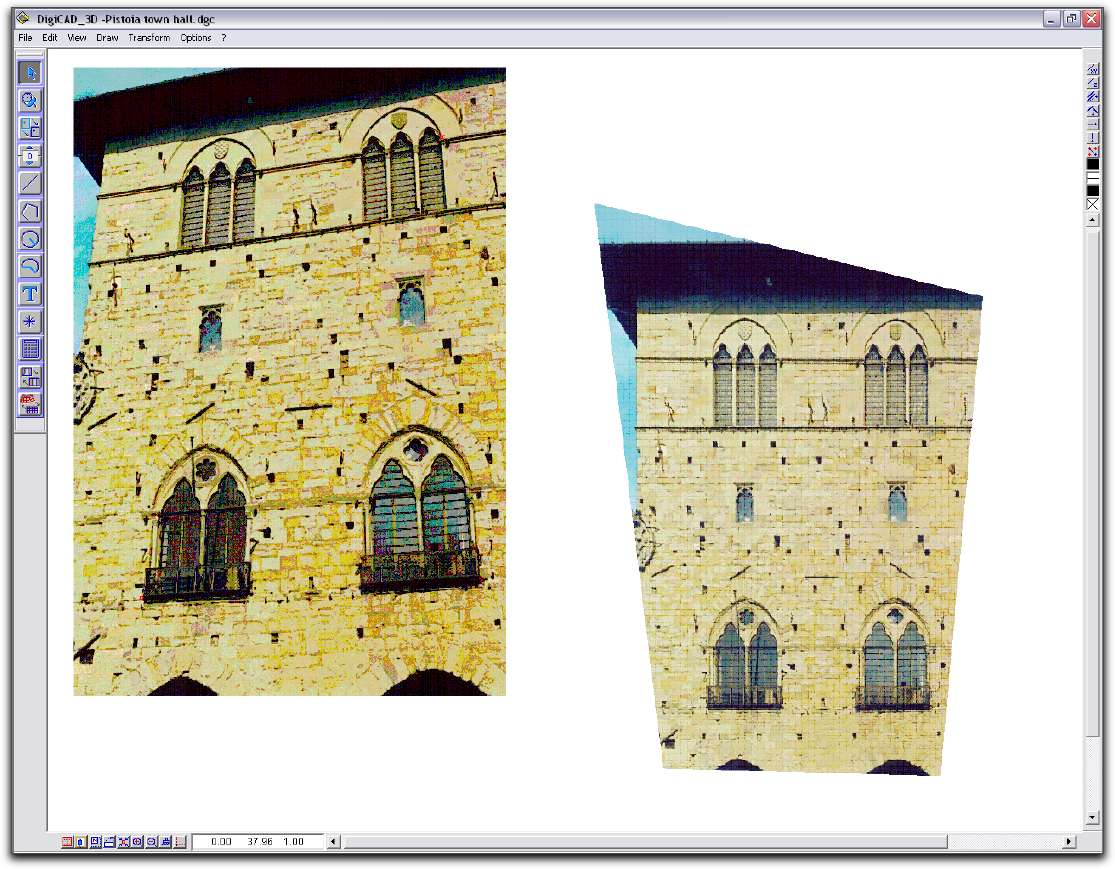

Elimination of perspective distortion

Based on four or five fixed points of reference, you can operate directly on the image or on elements drawn on the image.

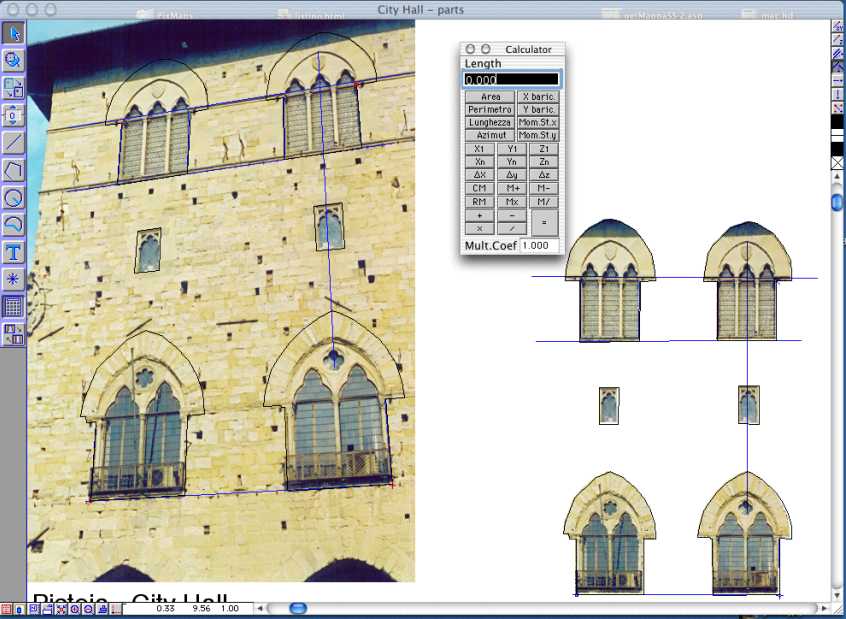

In the first instance, you obtain a new image without perspective distortion and to scale. In the second case, if the original image is digitized, the Dynamic Attach feature allows you to view both the digitized drawing and the straightened drawing on screen at the same time. So you have total control and increased flexibility – you can check the accuracy of your data as you work.

Partial transformation

It is possible to transform just a part of an image, delimited by a polygon, drawn either on the original image or where it is to be transformed. This function, along with the new possibilities for transparency described below, enables you to select relevant details from the original images or photos – construction details, decoration, frescoes, special materials, damaged elements, etc.

Transparent images

Resulting images can be transparent or opaque. A transparent image can be superimposed on drawings or other images and is totally see-through. For example, you could superimpose a particular construction detail over a technical drawing or one map over another. An opaque image obviously covers whatever is beneath it.

Mosaics

Mosaic work is easy with DigiCad 3D. You can join confining or superimposed images such as construction details within a building facade, or two maps scanned to different scales. The accuracy of the mosaic is guaranteed by the common origin of the fixed measurements, by the transparency of the images and by their delimitation.
DigiCad 3D can also join a number of images with missing parts.

Two-points transformation

Four attach points are not always necessary to transform an image. If a part of the original photo is perfectly rectangular, then the two extremes of the diagonal are sufficient as attach points.

Approximated transformation without measurements

Even without precise or detailed measurements, it is possible to make an attempt at transformation, using those elements held to be vertical or horizontal.

Straightening up curved surfaces

Until now, photogrammetry programs using just one photo have been limited to straightening up flat surfaces only.

DigiCad 3D has broken that barrier!  It allows you to straighten up curved or irregular images.

Buildings like the Coliseum in Rome, or the Leaning Tower of Pisa, the Capitol Hill in Washington or the Casa Mila of Gaudì in Barcelona? No problem for DigiCad 3D!

Straightening up is achieved using a mesh or grid, regular or irregular, which is then superimposed on the irregular image, with fixed reference lines or points.
With the same method an aerial photo can be exactly superimposed to a map.

Elimination of optical deformation

Wide-angle, or other special lenses can cause serious optical deformation to images; straight lines can become curves and a flat surface can take on the familiar 'barrel' or 'cushion' appearance.
DigiCad 3D offers a much faster method, based on an algorithm which deals quickly with the common types of optical deformation  in wide-angle and zoom images.

It allows you – for several different lenses - to  manage correction data, file it and retrieve it from by a menu.

Mesh system is still available in the new version.  Indeed it is the best way of correcting irregular optical deformation.

Correction and georeferencing of maps

As with images, so maps can have perspective distortion eliminated , removing distortions on the support material or errors in copying, scanning and printing. DigiCad 3D allows one to work on maps joining and superimposing raster and vectorial maps and to define any kind of mapping coordinate references.

Digitalization

DigiCad 3D can digitize from graphic tablets, digitizers or directly on screen, from scanned images or digital photos. It is compatible with all major programs and has no problem in accepting drawings and photographs in any format and measuring 2D and 3D geometric values.

It is possible to use large format drawings, notwithstanding the size of your tablet, scanner or the image itself. You can also superimpose, join or modify portions of drawings using the automatic Re-attach procedures.
On technical and architectural drawings it is possible to insert reference markers and to block horizontal, vertical, perpendicular or parallel scrolling.

A special calculator computes from drawings and existing documents a varied and large amount of data, such as lengths, areas, barycenters, static moment, costs, volumes, coordinates, angles – data which can then be elaborated by mathematical or financial programs, spreadsheets, etc.

Textures

DIGICAD 3D is the ideal tool for creating textures from photos of facades or construction details, decorations, paintings and even whole facades for use on simplified 3D models. Textures selected for use on 3D elements with a rendering program must be completely flat.

Importing - Exporting

DIGICAD 3D has extremely flexible procedures for importing and exporting, which make it compatible with all other programs.
The digitized drawing or transformed image can be transferred to other applications using cut-and-paste, filed in GIF, JPEG, TIF, PICT, BTM, 3D DXF or DWG, ASCII XYZ, Minicad, Domus.Cad and others graphic formats.
You can import documents in XYZ-ASCII format and drawings in DWG, DXF, CXF, PICT, (Mac), BTM (Win) and WMF (Win).
