The Geo-Tec programs are dedicated to the geo technical field and related structural analysis.

Geo-Tec A Penetrometric tests
Geo-Tec B Slope verification (Now for Windows, Mac Os X and mac Os 9)

Geo-Tec A Program Features - penetrometric tests

Version 2.4

GEO TEC A allows for a complete elaboration of on-site static and dynamic penetrometric tests. The elaboration is made according to the best known methodologies (Begemann, Schmestron, Douglas - Olsen and many others).

The interpretation methods proposed can be changed by the user and are fully documented. The most appropriate method can be chosen in relation to the area and drilling data.

Once the above data is defined, GEO TEC A automatically elaborates and defines geotechnical parameters, with the possibility of interactive control.

Penetrometric data can be divided in like groups by using the mouse, after which the program displays the complete ground type stratigraphy, Cu, friction angle, specific gravity, ground pressure, and shear forces.

It is possible to modify the typology and graphic representation for each project internally.

Stratigraphies can be exported to other programs using spreadsheets.

Geo-Tec A conforms to Macintosh standards by allowing importation and exportation of text and graphics using Copy and Paste.

GEO TEC A uses functions such as Apple Events, Edition Manager, and Balloon Help.

Summary

Geo-Tec A Program

Features - penetrometric tests

Configuration

Price

Slope verification - now for Windows, Mac os X and Mac Os 9!

Program Characteristics - Janbu, Fellenius, and Bishop methods

Version 6 novelties

Configuration

Price

Windows Geo-Tec B Demo Download

Macintosh Geo-Tec B Demo Download

Free downloads

Configuration

Geo-Tec A is for Macintosh.

Macintosh 680x0 or Power Macintosh. System 7.1 or later.

Price

Prices and Special Offers

To order Interstudio products contact us directly at order@interstudio.net

Geo-Tec B Program Features - slope verification - Now for Windows, Mac os X and Mac Os 9!

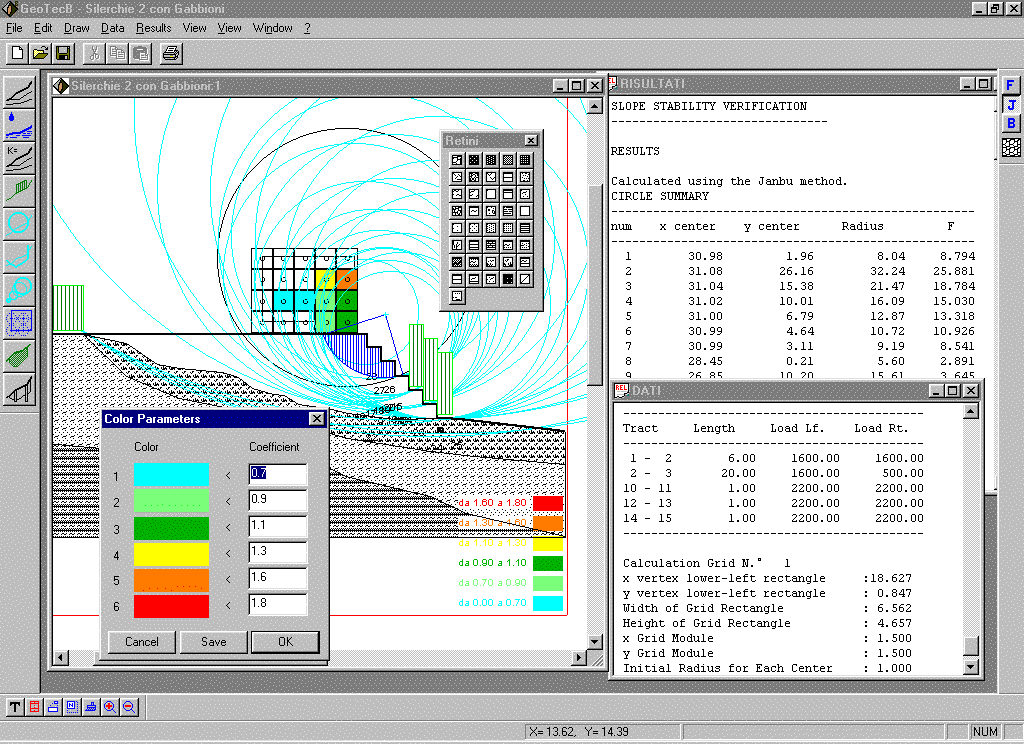

Version 6.0 - Click on the images to enlarge
